Sliding gate motors, under full control.
Industrial AC drive units for sliding gates from 600 kg to 4000 kg — continuous duty, precise force control, and dependable outdoor operation.
Load range
600–4000 kg
Motor variants
7
Power supply
220 / 380V
Outdoor rating
IP44
Standard duty line
SLAC600 — SLAC2500600 KG
SLAC600
1000 KG
SLAC1000
1500 KG
SLAC1500
2000 KG
SLAC2000
2500 KG
SLAC2500
// Figures

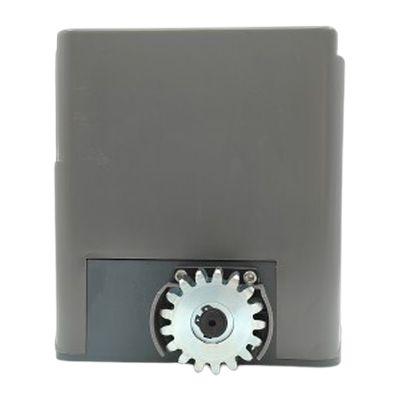

600KG · BACK

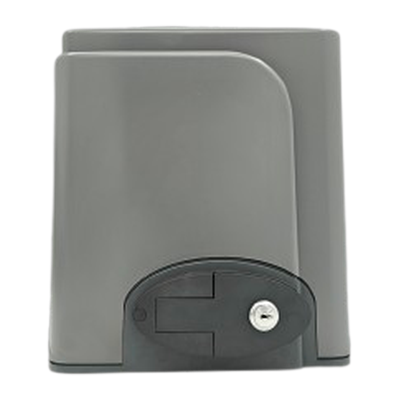

600KG · FRONT

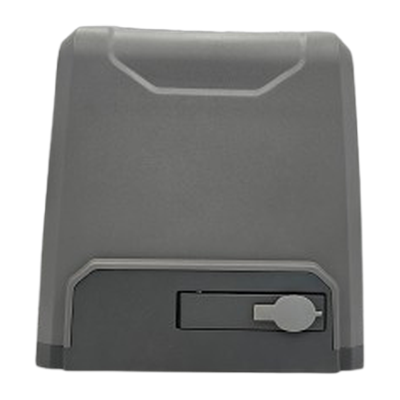

1000–2000KG · FRONT

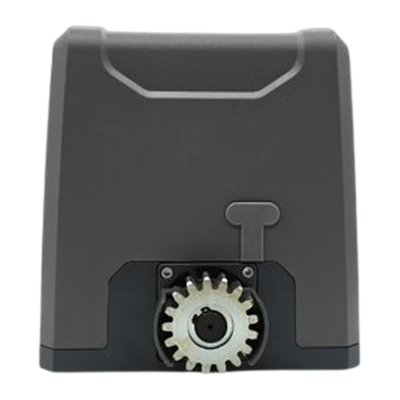

1000/1500/2000KG · BACK

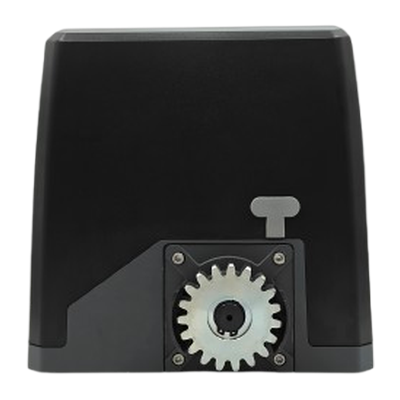

2500KG · BACK

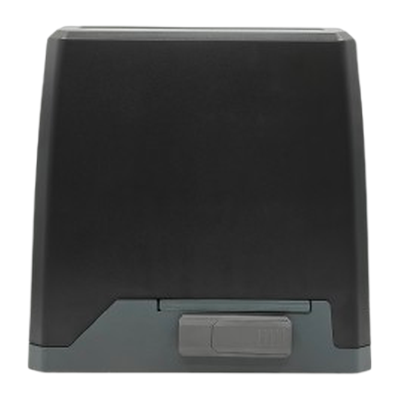

2500KG · FRONT
// Specification readout
| Unit model | SLAC600 | SLAC1000 | SLAC1500 | SLAC2000 | SLAC2500 |
|---|---|---|---|---|---|
| Power supply | AC220V/50Hz | AC220V/50Hz | AC220V/50Hz | AC220V/50Hz | AC220V/50Hz |
| Max. loading weight | 600 Kg | 1000 Kg | 1500 Kg | 2000 Kg | 2500 Kg |
| Motor power | 280 W | 400 W | 550 W | 750 W | 850 W |
| Output torque | 16 N·m | 22 N·m | 32 N·m | 40 N·m | 50 N·m |
| Output shaft height | 46 mm | 50 mm | 50 mm | 50 mm | 50 mm |
| Limit switch | Magnetic | Magnetic | Magnetic | Magnetic | Magnetic |
| Gate moving speed | 11–13 m/min | 11–13 m/min | 11–13 m/min | 11–13 m/min | 11–13 m/min |
| Remote control range | ≤30 m | ≤30 m | ≤30 m | ≤30 m | ≤30 m |
| Continuous run time | 20 min | 20 min | 20 min | 20 min | 20 min |
| Working temperature | -20–70°C | -20–70°C | -20–70°C | -20–70°C | -20–70°C |
| Package weight | 9.00 Kg | 15.00 Kg | 16.00 Kg | 17.00 Kg | 15.00 Kg |
Heavy duty line
SLAC3000 — SLAC40003000 KG
SLAC3000
4000 KG
SLAC4000
// Figures

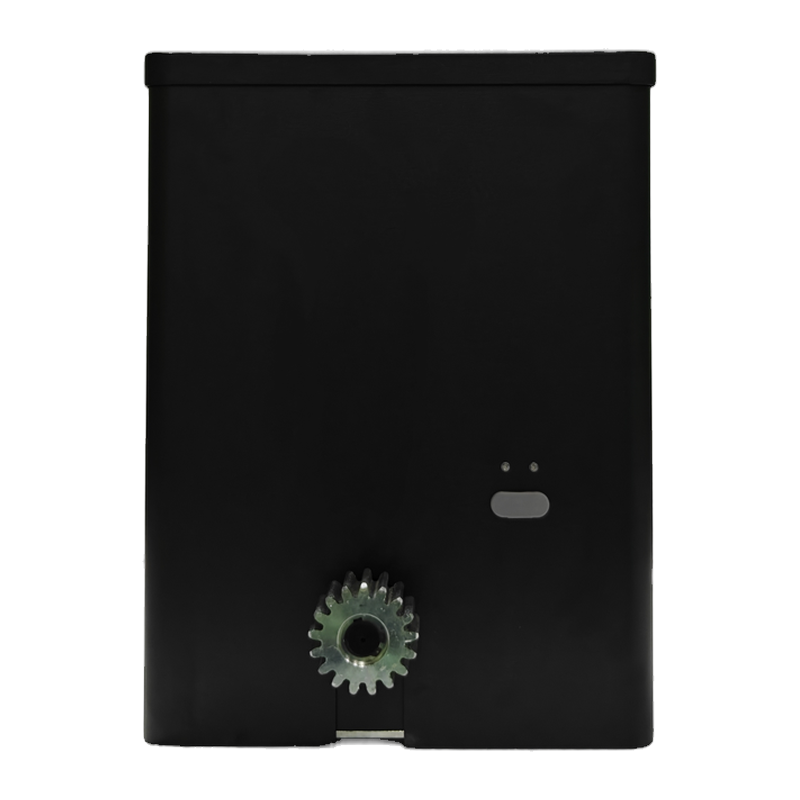

3000KG · BACK

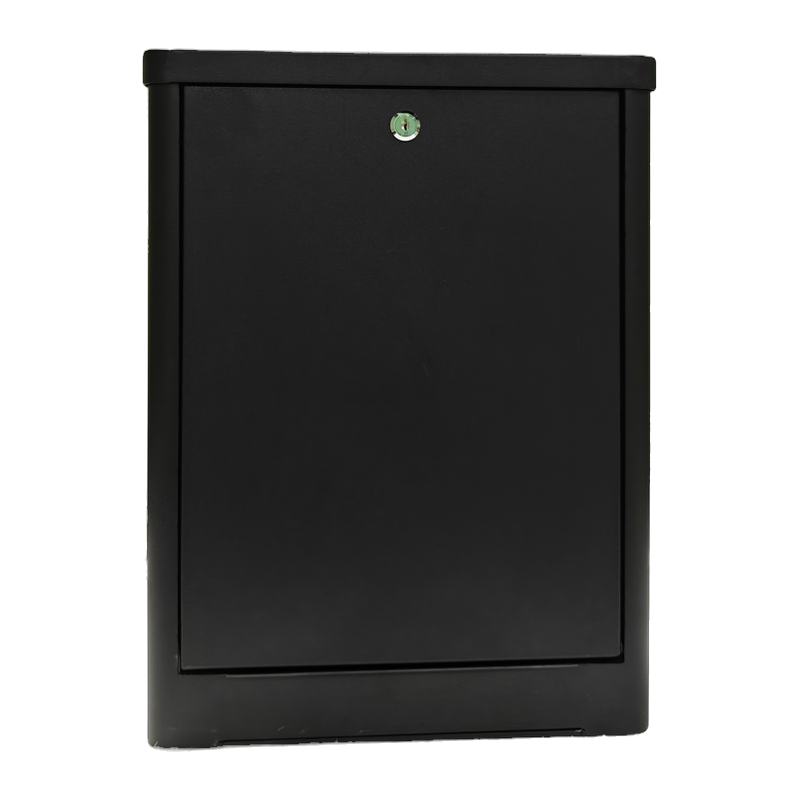

3000KG · FRONT
// Specification readout
| Unit model | SLAC3000 | SLAC4000 |
|---|---|---|
| Power supply | 220V | 380V |
| Max. loading weight | 3000 Kg | 4000 Kg |
| Motor power | 1500 W | 1500 W |
| Output torque | 220 N·m | 220 N·m |
| Control model | Frequency inverter | Frequency inverter |
| Limit switch | Encoder | Encoder |
| Gate moving speed | 10 m/min | 10 m/min |
| Remote control range | ≤30 m | ≤30 m |
| Remote frequency | 433.92 MHz | 433.92 MHz |
| Continuous run time | 20 min | 20 min |
| Working temperature | -20–50°C | -20–50°C |
| Package weight | 50.00 Kg | 50.00 Kg |
Compatible accessories
8 modulesAlert

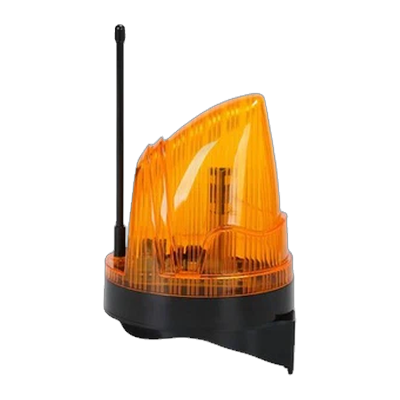

Alarm Flash Lamp
Safety

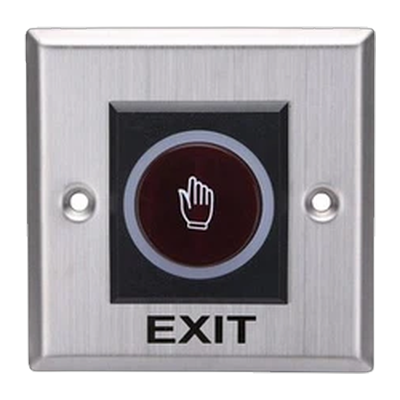

Infrared Exit Switch
Safety

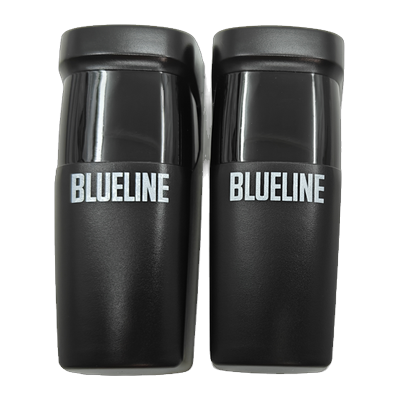

Photocell Sensor
Control

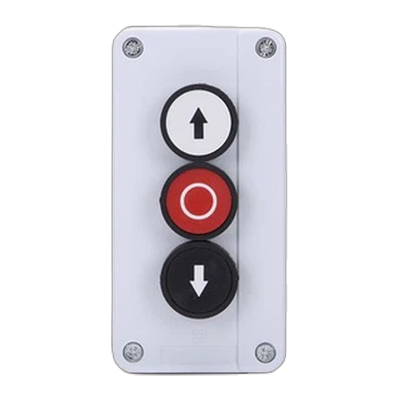

Push Button
Access

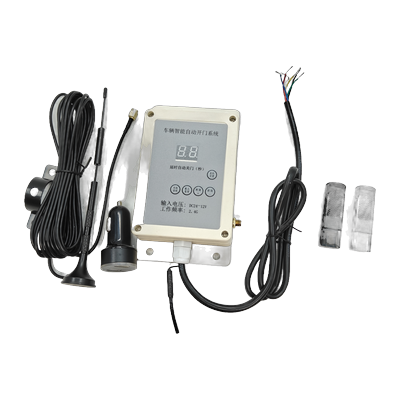

RFID USB System
Connectivity

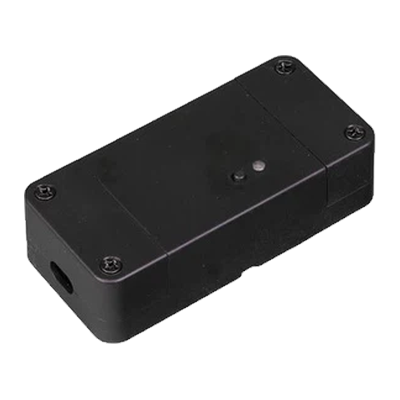

Tuya WiFi Module
Control

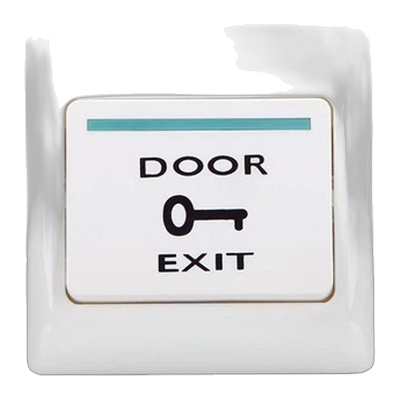

Wall Switch
Access

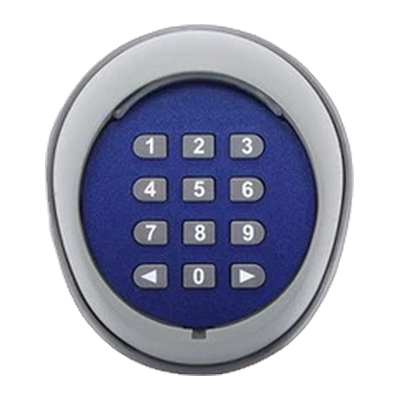

Wireless Keypad
Standard features
8 systems activeObstacle detection
Soft start / stop
Manual override
Adjustable speed & force
Thermal protection
Auto reverse function
Auto-close function
Mobile access
Ready to automate
Request a Quote
Get the right SLAC motor for your gate.
Share your gate weight and site details — our engineers will recommend the correct unit and accessory set for your installation.
